Roland Swatches for Corel Draw and Illustrator

Roland Swatches for Corel Draw and Illustrator

When you install VersaWorks on your computer, Roland's swatches for Corel Draw and Ilustrator will automatically get installed into the Program Files>VersaWorks>Swatches Directory. If you do not have the ability to retrieve these swatches from this directory, we have uploaded them to our knowledge base for you. See the attachments.

To install these, download the zip file for the software you are using (Corel Draw or Illustrator) and unzip them.

For Corel Draw

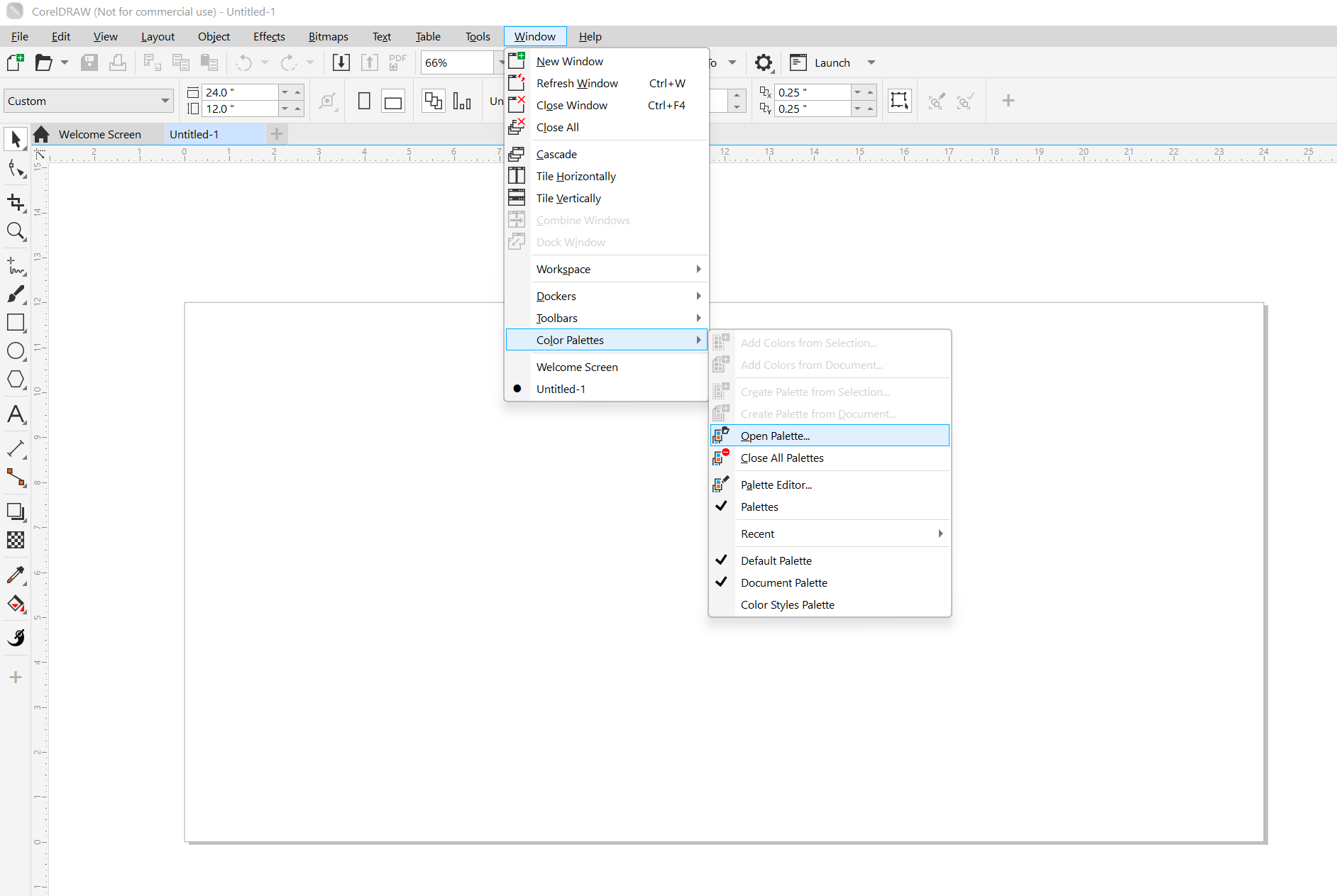

If you are using Corel Draw, go to Window>Color Palettes>Open Palette. Now ensure the file type is correct. The default may be xml, but Roland has saved it as a .cpl. Change the file type to .cpl or all files.


For Illustrator:
  1. Find the Swatches section in Illustrator. If you do not see it, go to Window>Swatches.

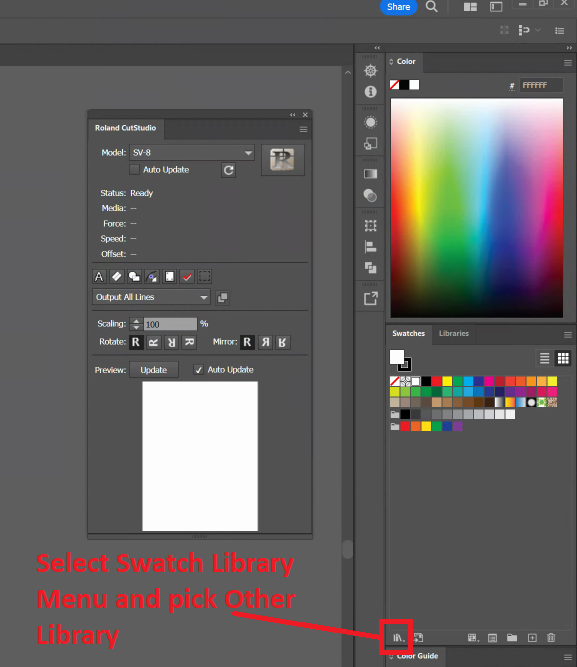

  2. In the Swatches section, click the button for Swatch Libraries Menu:

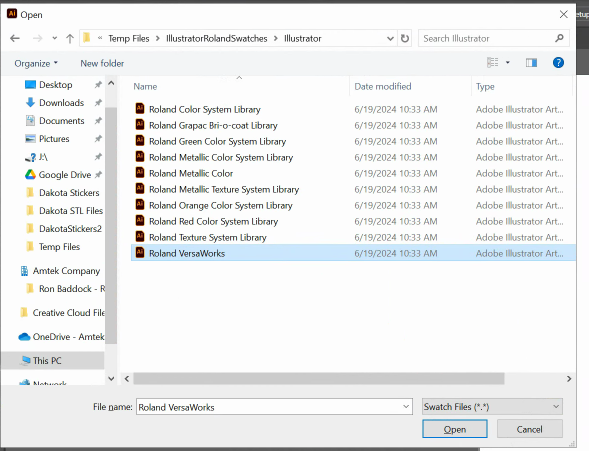

    3.  A new window will open. Browse to where you unzipped the Roland Illustrator Swatches you just downloaded from this article and select Roland VersaWorks and click Open:


   4. You should see the Roland VersaWorks Swatches inside of illustrator ready for you to use:
