LEF Head wash

Click here for a video showing how to enter service mode. This video shows the process on an Roland SG/VG Printer cutter, but the button sequence is very similar for the LEF/LEF2 systems.

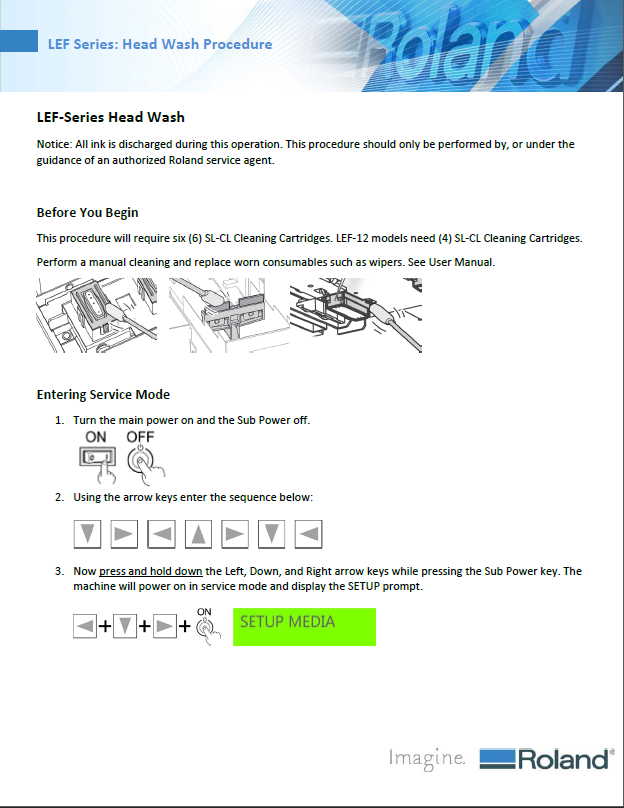

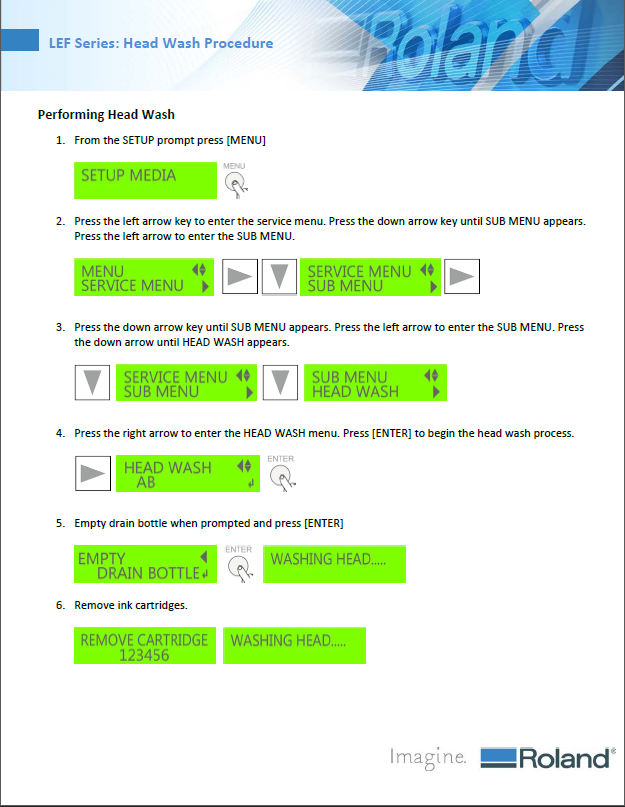

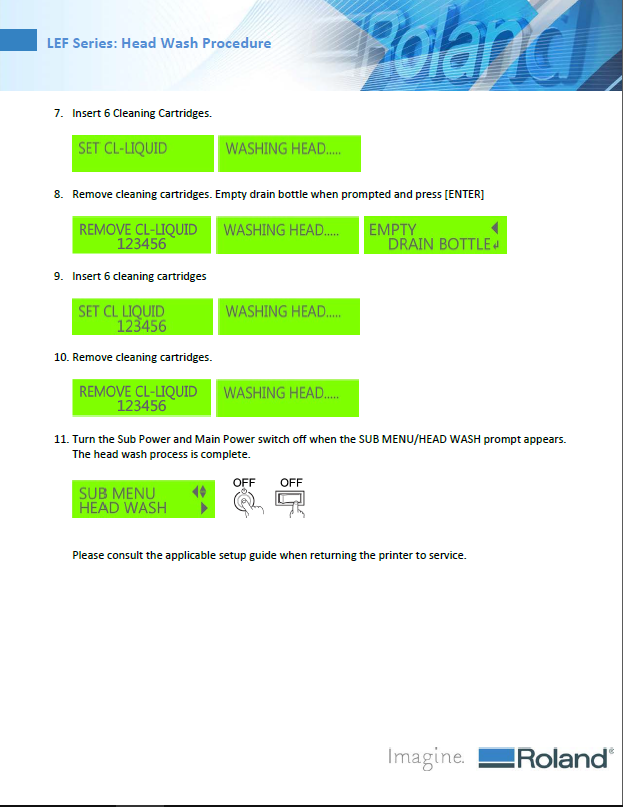

Written instructions for entering service mode are also listed below.
