How to Download Connected Components Workbench

How to Download Connected Components Workbench

Many Amatrol learning systems require the user of Rockwell's Connected Components Workbench software. This is a free download, but it can be difficult to find. Follow the steps below:

Step 1: Create a Rockwell account here: https://www.rockwellautomation.com/account/create-account

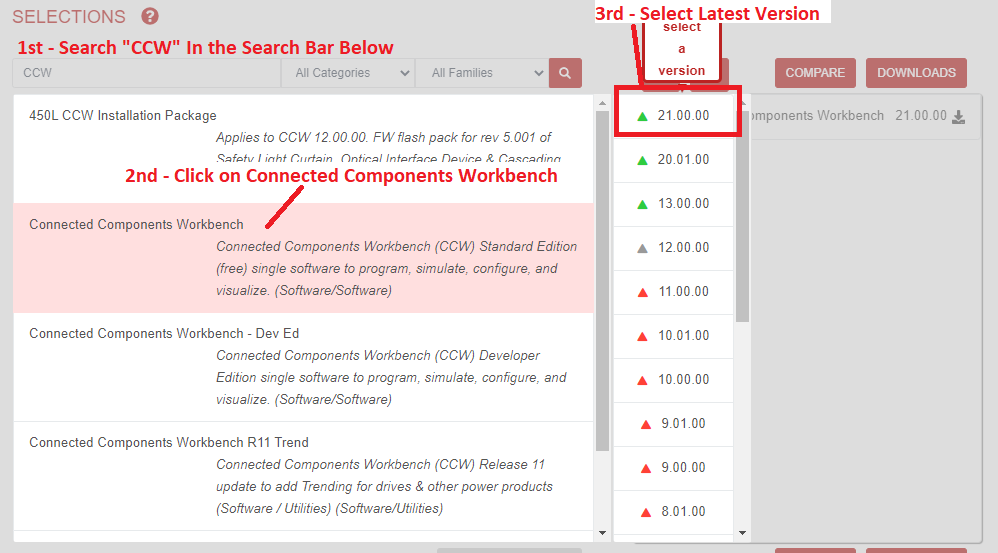

Step 3: Search "CCW" in the Search Box
Step 4: Click on "Connected Components Workbench"
Step 5: Select the version you need from the list


Steps 3, 4, and 5 are shown in the screenshot above.

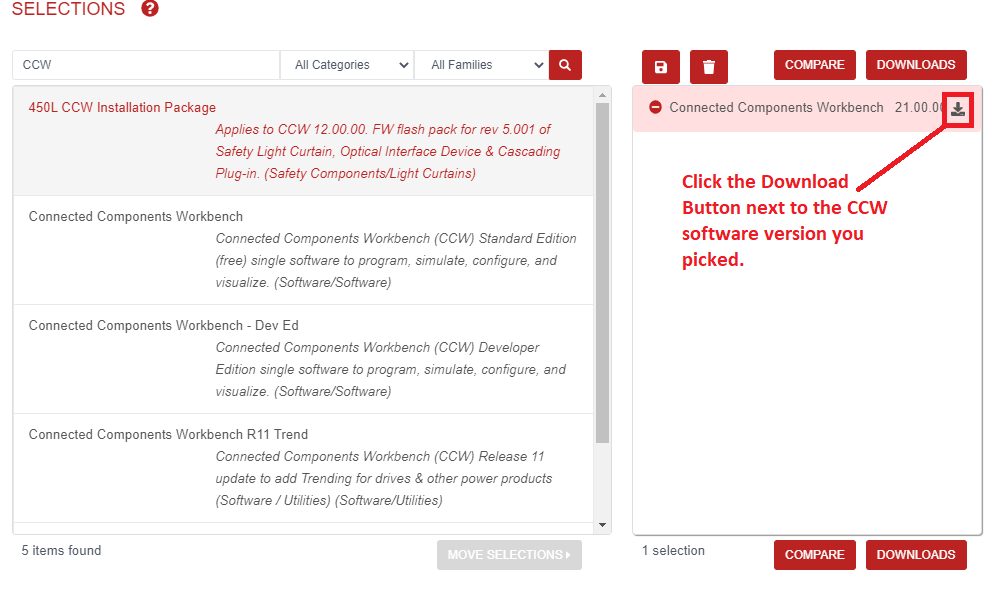

Step 6: Click the Download button next to the CCW software version you picked

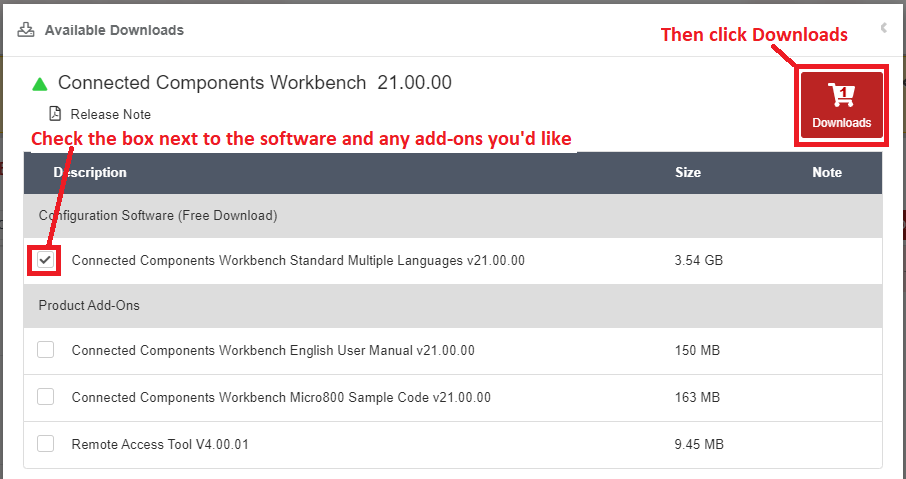

Step 7: Check the box for the CCW software and any add-ons you'd like, then click Downloads

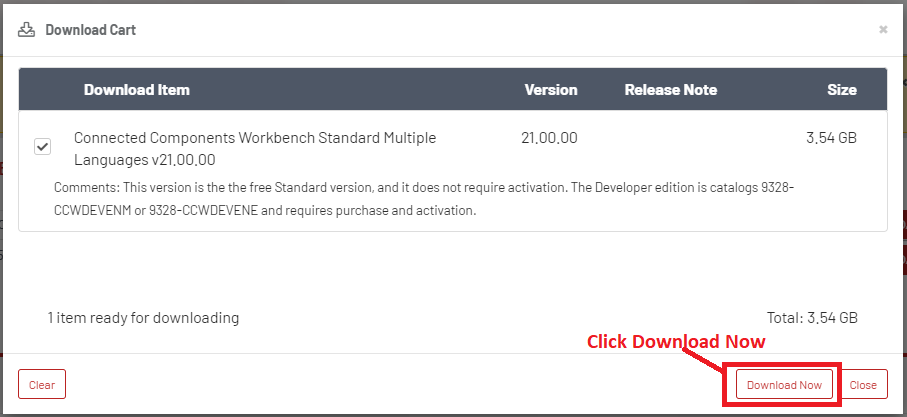

Step 8: Click Download Now


Here is a video of the process:
