FANUC Robot Controller Batter Location

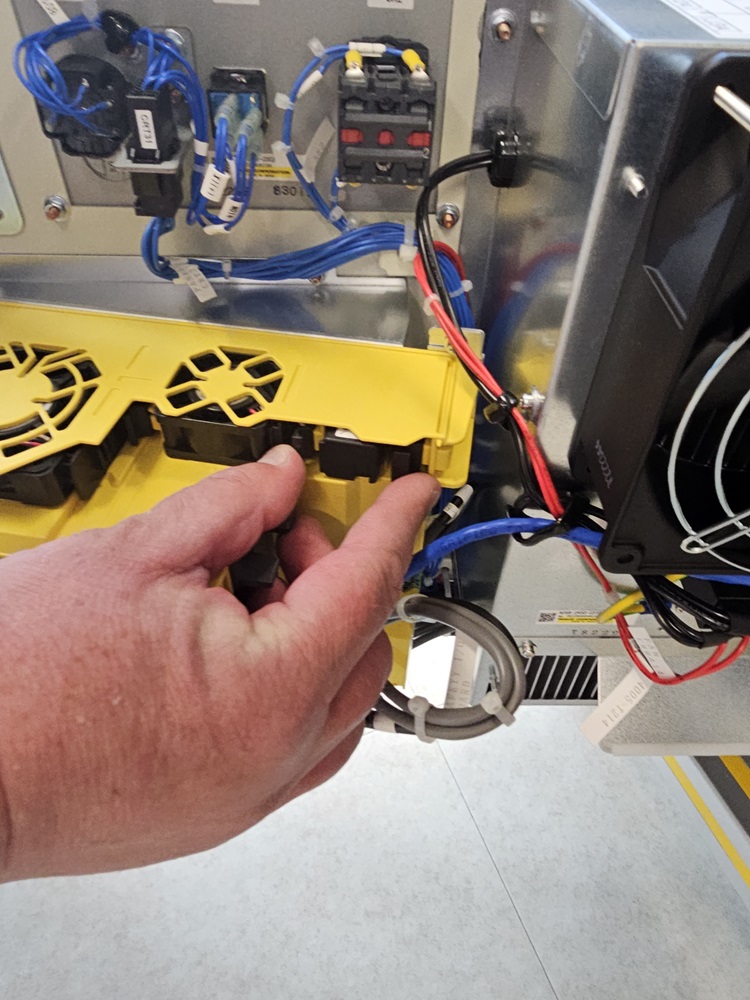

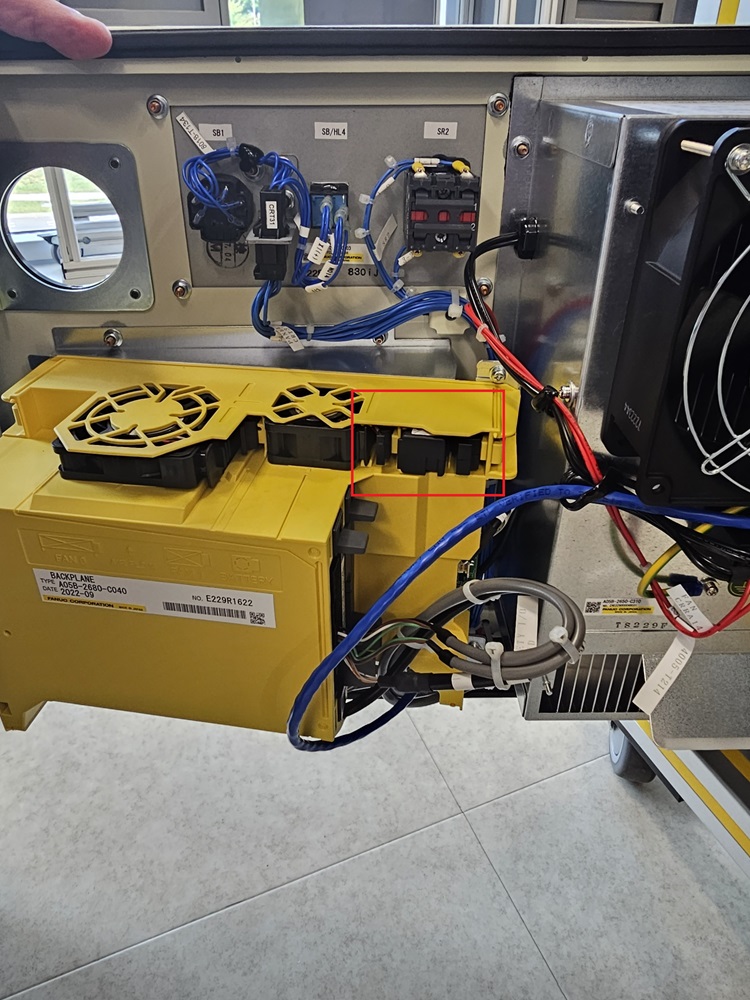

The battery in the FANUC robot controller can last up to 4 years. Replacing it is simple. Open the controller door and swap it out. The photos below will help you understand the location.

You can also find the written procedure attached to this article in the attachments section.
