uPrint PM Kit

uPrint PM Kit

The periodic maintenance kit for the uPrint comes with:
  1. 2 chamber fans (1 for each side).
  2. Head cooling fan
  3. Replacement air plenum
  4. Replacement head cover

Here are videos for replacing these items:
Written Instructions for these replacements:

Before starting be sure to power down the machine and disconnect the power cord
Start by removing the top and side panels.

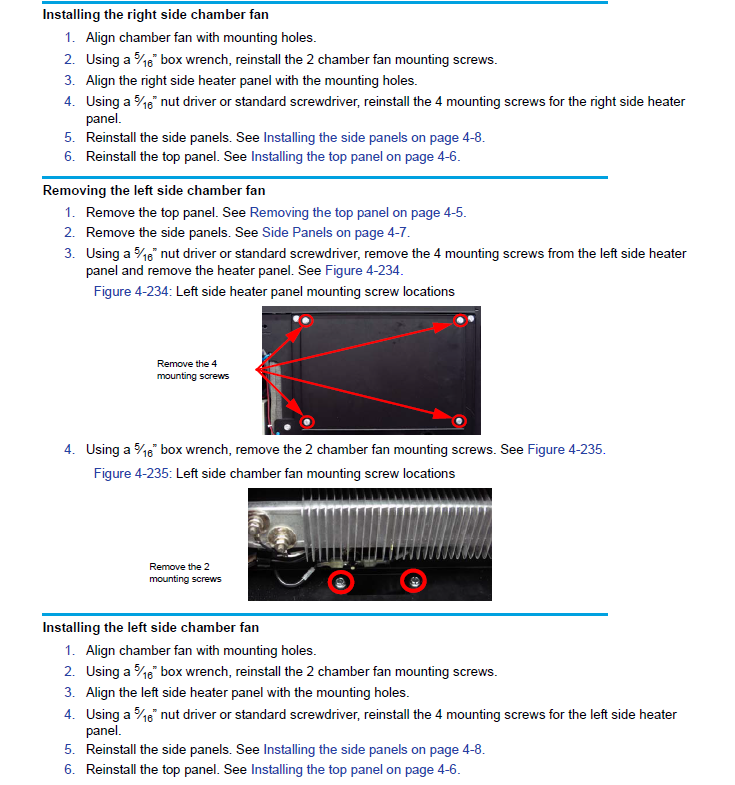

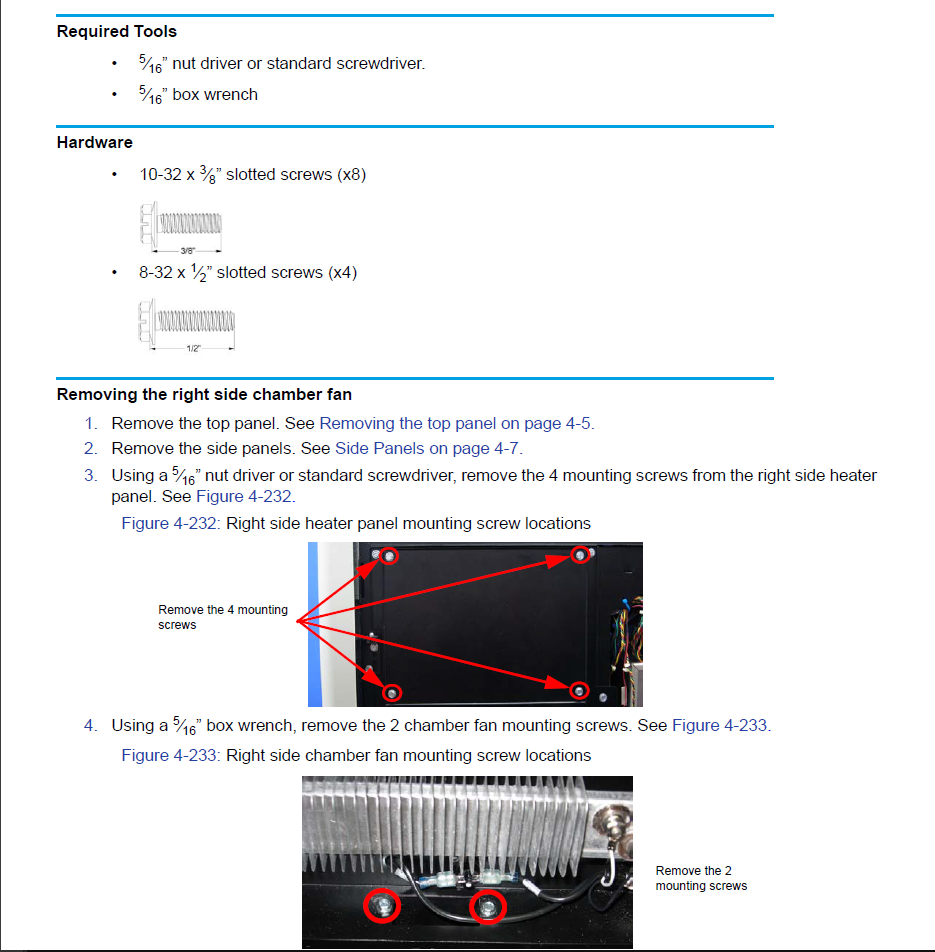

Replacing the chamber fans:

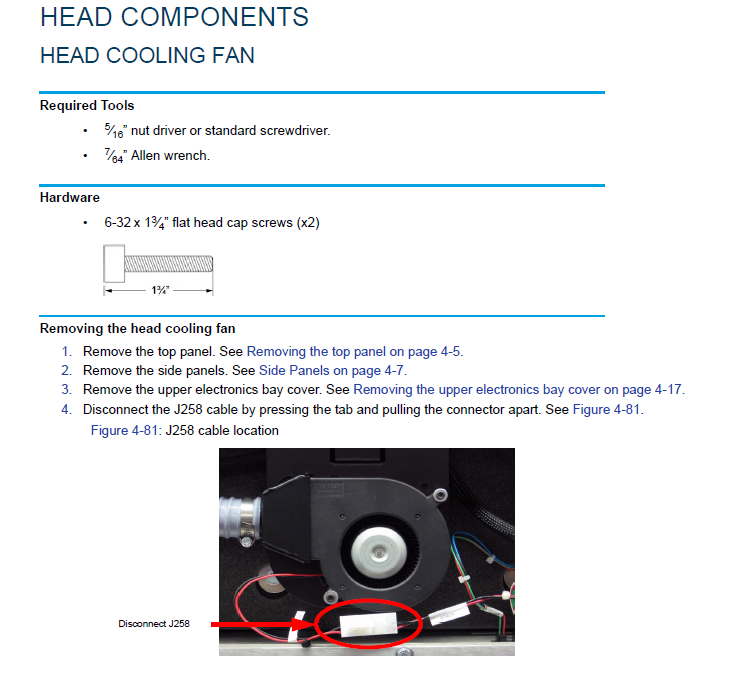

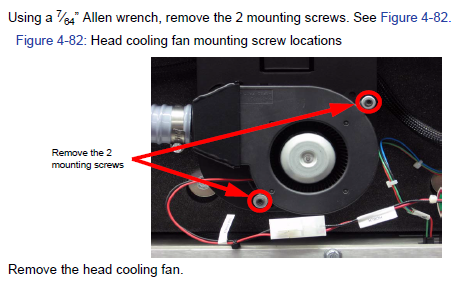

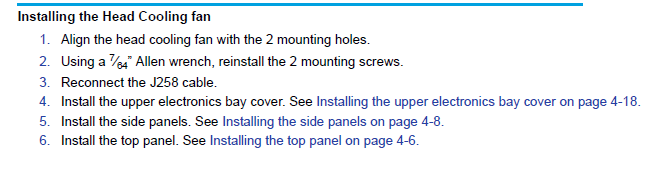

Replacing the head cooling fan:

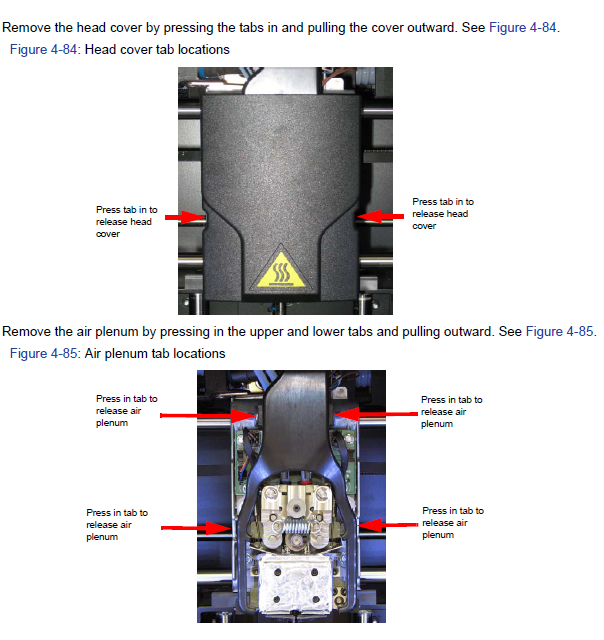

Replacing the air plenum and head cover:
