GrabCAD - Update Firmware

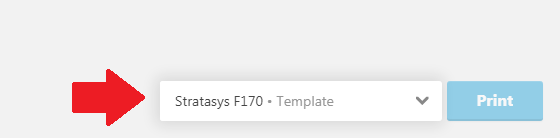

In GrabCAD first select the printer:

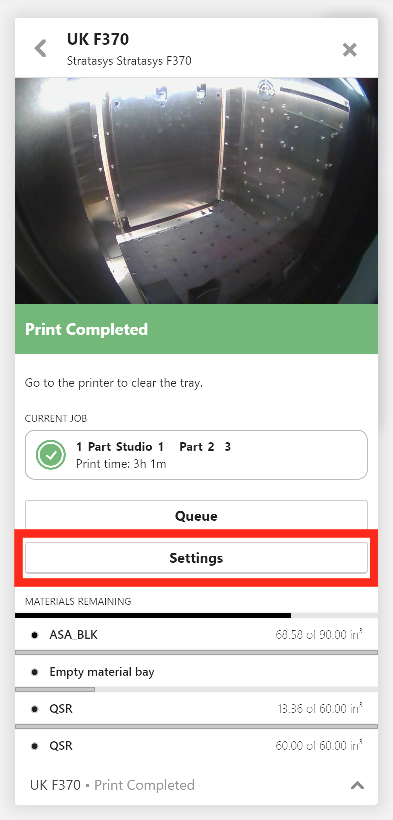

Then go to Settings:

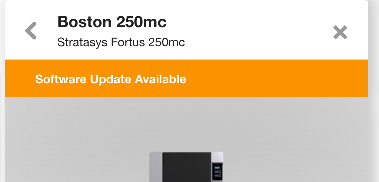

If the printer firmware is out of date, it will look like this:

Click on the orange banner.  Then you will see this:

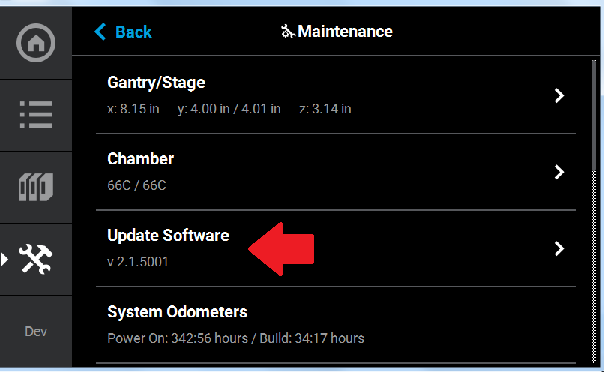

It may take a minute for this orange button to become available, click on it, then go to the printer and select Maintenance / Update Software:

After that the printer will show that the update is Verifying and then Updating.  This can take up to 15 minutes.
