F123 Configuration File via USB

First insert the USB flash drive into one of the available USB ports on the F123 printer.

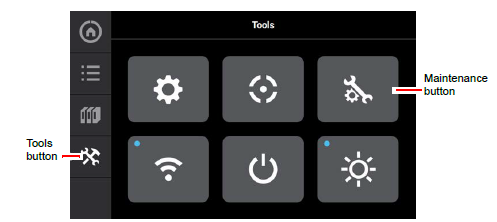

On the touchscreen, open the Tools page then navigate to Maintenance

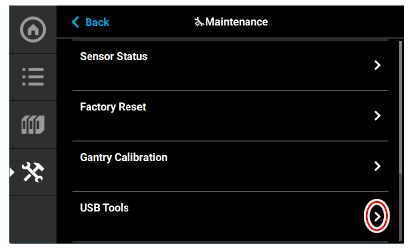

From the maintenance page, select USB tools then select CFG Save

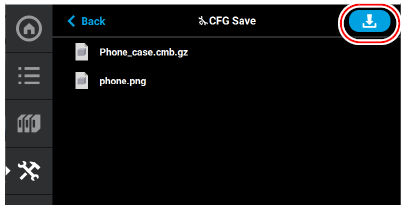

Select the USB and navigate to a save file location on the USB drive, then select the download button. Press accept when the download is complete.
