14,9 error code Z axis HOME

14,9 error code Z axis HOME

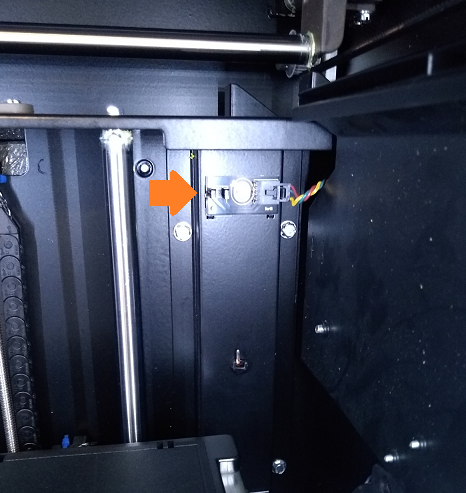

This error code refers to the top sensor on the back wall inside the uPrint chamber here:

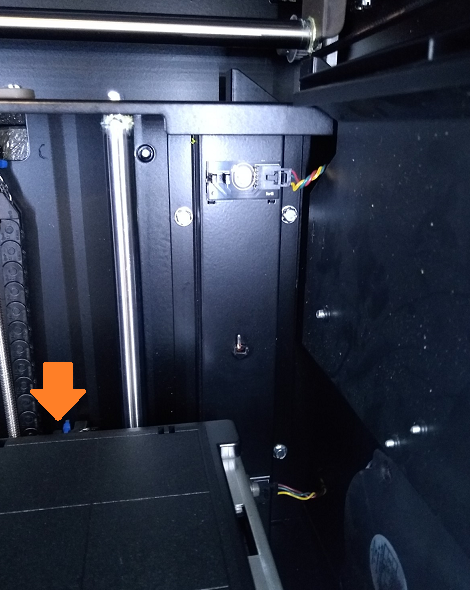

If there is an obstruction (big chunk of a failed build) sitting behind the build tray the platform cannot rise all the way to this sensor.  Check here:
